XL7 installation - fit and forget

XL7 transducers are designed to work right in the heart of the process. They are not affected by pipe/tank size or upset by gas or air bubbles. Installation and operation is quick and simple, and should not require any special training or skills.

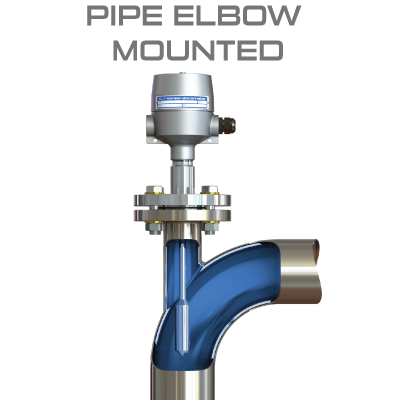

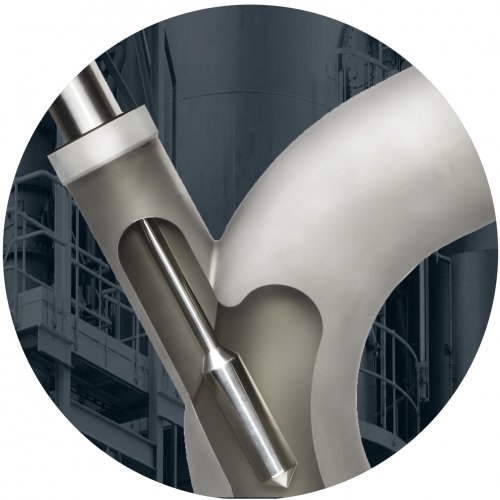

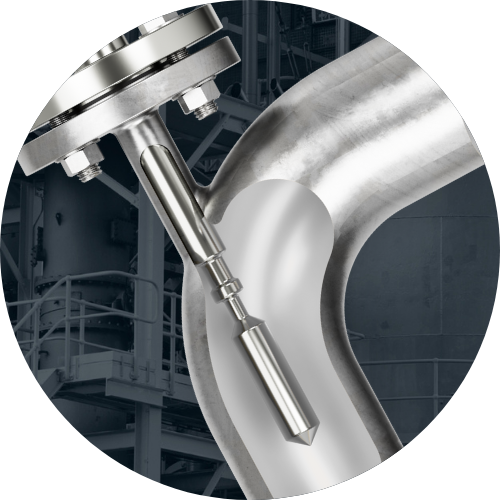

Pipe elbow mounting shown as example:

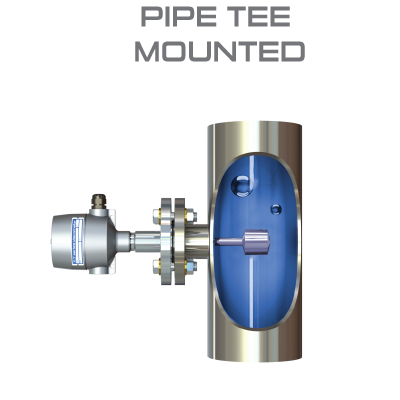

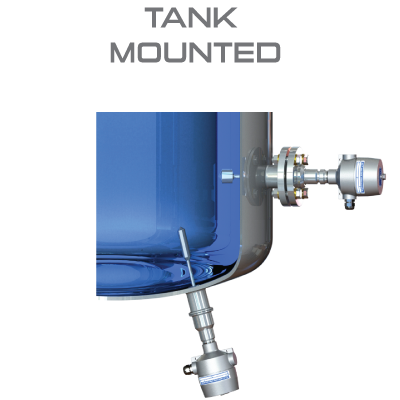

• Tank or pipe mounting

• Operates in any orientation

• No special pipework

• No pumps or bypass piping

• Any process connection

• Cable length up to 3 km

• No on-site calibration

• Easy fitting

no calibration no maintenance no problem

An XL7 viscometer can be mounted in any orientation and supplied with virtually any process connection to suit your needs. The instruments require no special pipework or additional infrastructure — simply bolt on, supply power and you’re ready to measure viscosity. Calibration is maintained whatever the circumstances, so no on-site transducer recalibration is necessary.

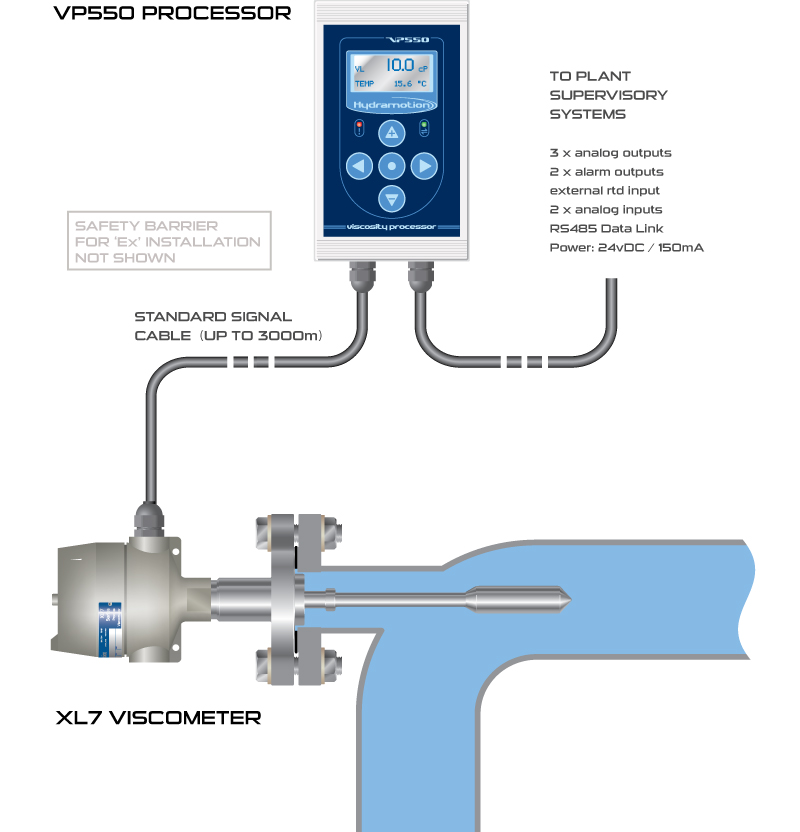

The HP550 Signal Processor is connected to the XL7 transducer via a simple 3-core cable and provides all display and signals for plant operation. Transducer and processor can be mounted up to 3 km apart;
4 – 20mA and serial data outputs allow for direct connection with recording and supervisory equipment for viscosity monitoring and control.

XL7 viscometers are frequently used as part of an automatic viscosity-based process control feedback loop.

any process fitting...

Practically any process coupling can be factory fitted to your new viscometer, ranging from flanges and threads to hygienic RJT, IDF & tri-clamp or Ingold fittings. Simply specify at the ordering stage.
